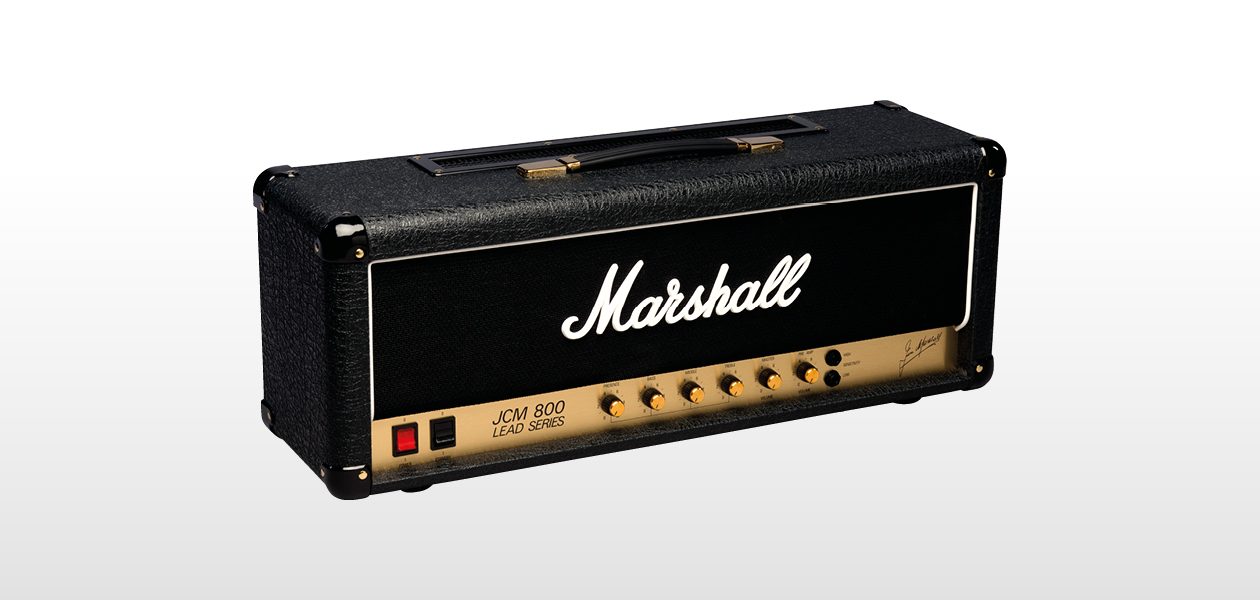

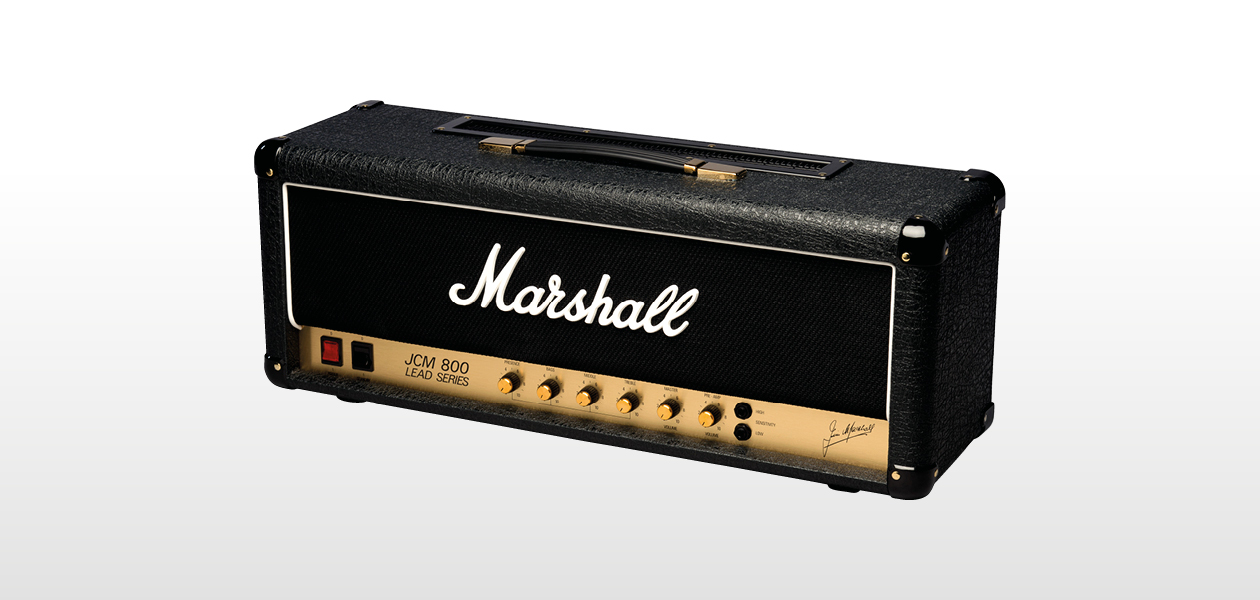

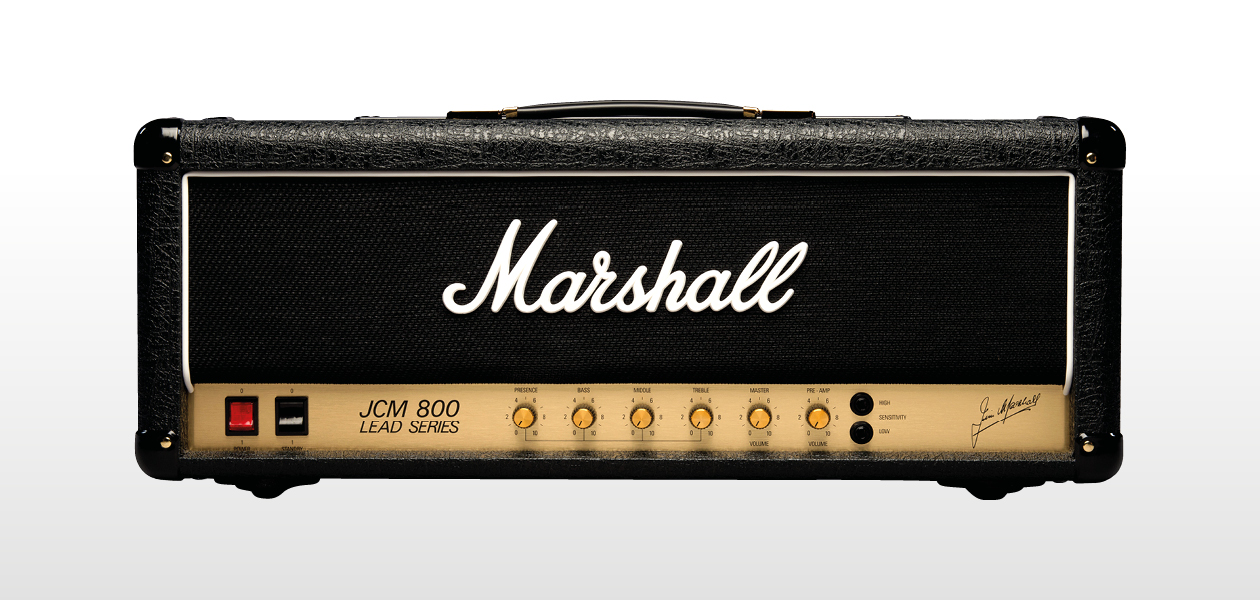

JCM800 2203

The art of the JCM800TM is its simplicity. Used by artists around the world, this amp continues to be one of our greatest. Oozing rock status, you can effortlessly detect its distinctive 100w roar. The first of our amps to feature a master volume for you to control your sound. We have added in a series FX loop, simple and effective.

Previous Next

Key Features

Master your volume

One of the few vintage reissues that features a master volume for you to power out those solo moments.

Change the EQ

The highly versatile EQ settings mean that this amp can play a range of genres and not just the rock or heavy metal it is synonymous with.

Mix your FX

This reissue introduces a series FX loop so to truly amplify your FX.

Create your tone

High and low sensitivity outputs designed to work with a wide range of guitar pickups.

Technical Specification

General
Model
JCM800 2203
Range
Vintage reissue
Technology
Valve
Channels
1
Electronics
Output wattage
100w
Outputs
2 x 1/4" jack speaker outputs, selectable 16Ω/ 8Ω / 4Ω load
Inputs
2 (1 x high, 1 x low)
Controls
Presence, bass, middle, treble, master volume, preamp volume
Effects
None
Effects loop
Yes, 1 x serial switchable
Valves
Preamp valves
2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
4 x EL34
Accessories
Cable
Detachable power cable included, speaker cable included
Footswitch
None
Dust cover
M-COVR-00049 (sold separately)
Dimensions (including feet and handle)
Weight
20.5 kg / 45 lbs
Width
740 mm / 29.1"
Height
315 mm / 12.4"
Depth
210 mm / 8.3"
