JTM45 2245

Let’s go back to the beginning. In 1962, in a small shop in Hanwell, Jim Marshall created and began selling the first Marshall amp, a JTM45TM. From this the Marshall sound was born. This reissue meticulously replicates this original Marshall sound. Using the GZ34 valve rectifier, it works with the ECC83 and 5881 valves to generate the harmonic and unmistakable Marshall tone.

Previous Next

Key Features

Opt for loud

Don’t underestimate this 30w amp, it definitely packs a punch.

Mix the tones

Using the four loudness inputs and two loudness options you can mix your sound together to generate a loud blend of crunch and clean.

Change the EQ

Normal and high treble settings add to the standard three band EQ and provide you with that extra creativity with your sound.

Vintage tones

This reissue painstakingly reproduces that legendary, warm and creamy tone of Marshall.

Add in FX

The clean and warm tones of a first Marshall can marry well with an array of FX pedals.

Technical Specification

General
Model
JTM45 2245
Range
Vintage reissue
Technology
Valve
Channels
2 (Split)
Electronics
Output wattage
30w
Outputs
2 x 1/4" jack speaker outputs, selectable 16Ω/ 8Ω / 4Ω load
Inputs
4 (2 x high, 2 x low) "Lead and Bass"
Controls
Presence, bass, middle, treble, high treble/loudness I, normal/loudness II
Effects
None
Effects loop
No
Valves
Preamp valves
2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
2 x 5881
Rectifier
1 x GZ34
Accessories
Footswitch
None
Cable
Detachable power cable included, speaker cable included

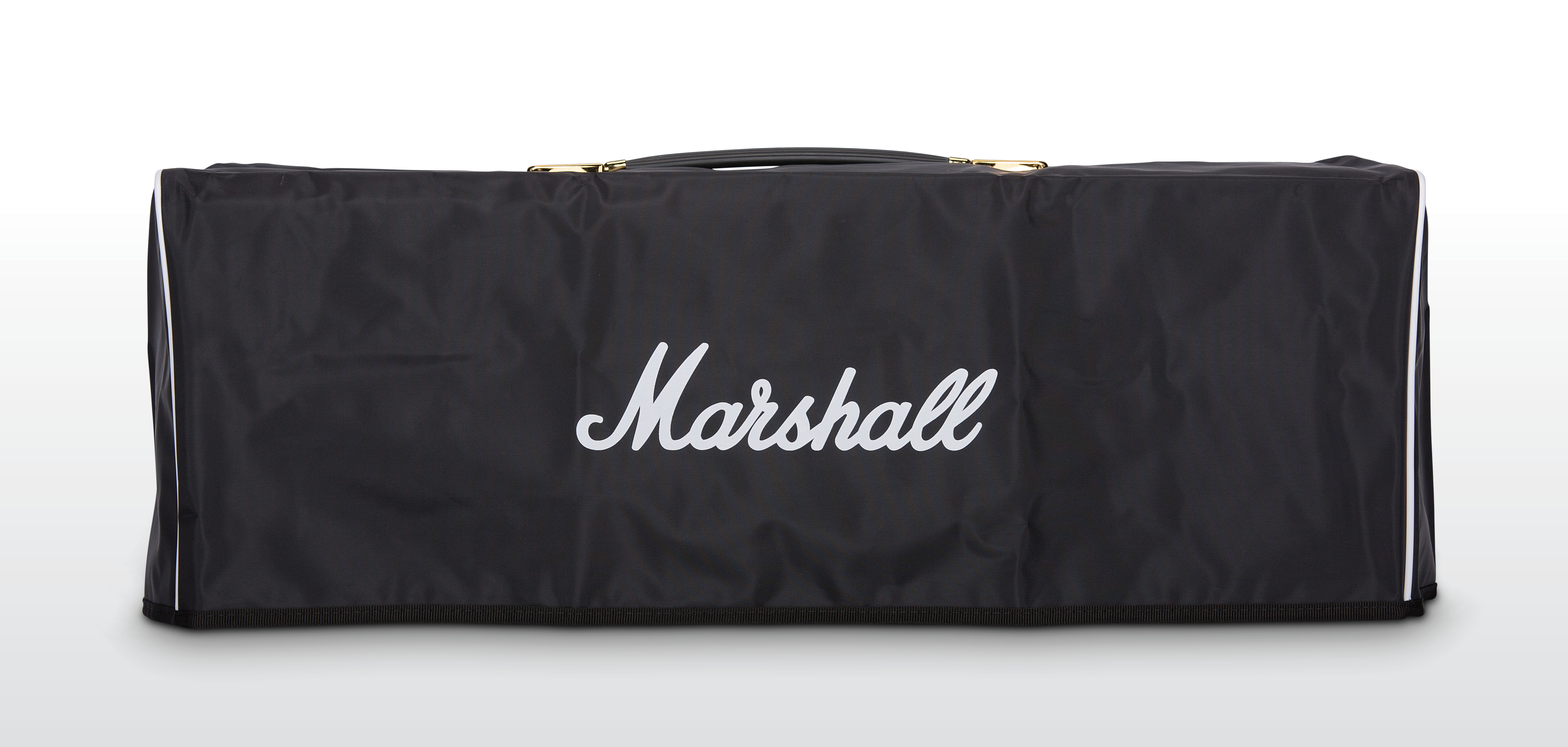

Dust cover
M-COVR-00013 (sold separately)
Dimensions (including feet and handle)
Weight
14.6 kg / 32 lbs
Width
665 mm / 26.2"
Height
265 mm / 10.4"
Depth
205 mm / 8.1"
